Linux-网络抓包

发表于 2025-12-10

wireshark

远程抓包

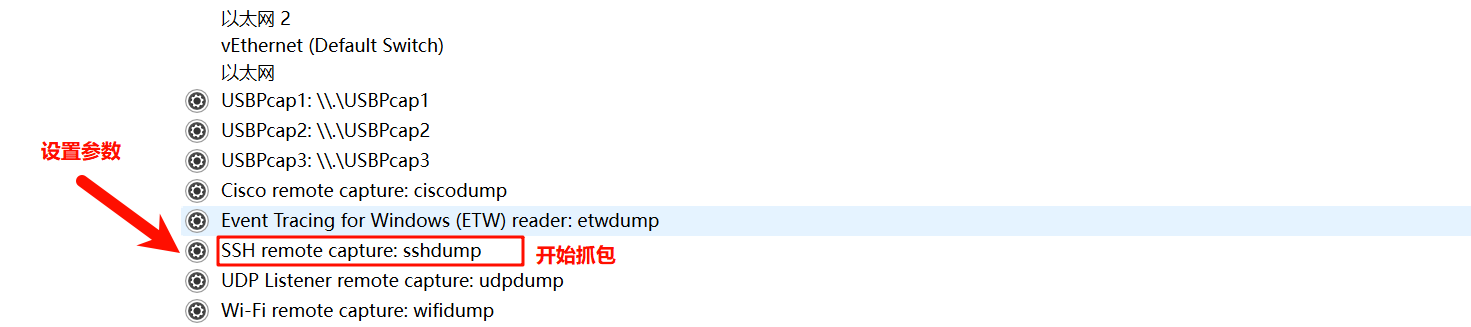

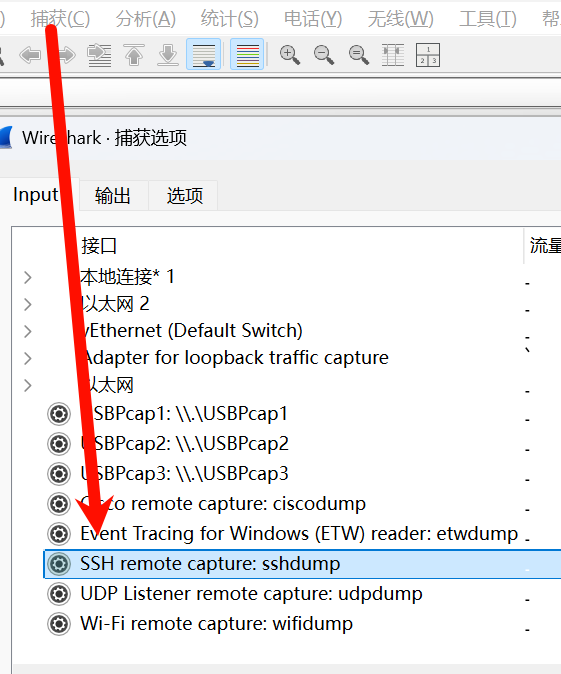

在wireshark的以下两个部分进行抓包，不建议性能分析时进行，在连通性验证时可以使用（ssh传输可能丢包等）

ssh+tcpdump+wireshark解析

直接抓包解析

1	ssh <ip> 'tcpdump -ni any -s0 -U -w - udp port 53' \| wireshark -k -i -

跳板机执行

1	ssh -J <jumpsever ip> <ip> 'tcpdump -ni any -s0 -U -w - udp port 53' \| wireshark -k -i -

直接抓包并保存

1	ssh <ip> 'tcpdump -ni any -s0 -U -w- udp port 53' > /tmp/packets.pcap

tcpdump

常用抓包指令

过滤tcp flags，比如抓syn报文，看是否能握手成功

1	tcpdump -ni any 'tcp[tcpflags] == tcp-syn'

查看tcp状态，如下为发送了sync，如果一直未回复，则可以在sar -n ETCP 1看到retrans/s不断上升

1	watch -n 0.1 'ss -tpn state syn-sent'

抓syn和syn+ack报文

1	tcpdump -ni any 'tcp[tcpflags] == tcp-syn or tcp[13]=18'

抓syn和syn+rst报文

1	tcpdump -ni any 'tcp[tcpflags] == tcp-syn or tcp[13] & 4!=0'

抓syn和icmp不可达报文

1	tcpdump -ni any 'tcp[tcpflags] == tcp-syn or icmp[0] = 3'

抓syn、syn+ack、rst和icmp端口不可达报文（tcp[13]指的是从tcp报文头偏移13字节的选项）

1	tcpdump -ni any '(tcp[tcpflags] == tcp-syn or tcp[13]=18) or tcp[13] & 4!=0 or icmp[0] = 3'

tcp flags抓包例子

1
2
3

tcpdump 'tcp[tcpflags] == tcp-syn'
tcpdump 'tcp[tcpflags] == tcp-rst'
tcpdump 'tcp[tcpflags] == tcp-fin'

抓取指定报文大小

1
2
3

tcpdump less 32
tcpdump greater 32
tcpdump <= 102

持续抓取端口 8080的流量，每个文件最大 100MB，最多保留 10个文件，写满后覆盖最旧的文件

1	tcpdump -i any -C 100 -W 10 -w my_capture.pcap port 8080

抓取 10000个发往 80端口的包

1	tcpdump -i any -c 10000 -w http_requests.pcap dst port 80

常用选项

参数	说明	示例
`-i <interface>`	指定抓包网卡。`any`表示所有网卡。	`-i any`
`port <端口号>`	过滤特定端口的流量（TCP/UDP）。	`port 8080`
`-C <大小>`	按文件大小分割。单位通常为MB（M）。	`-C 100`
`-W <数量>`	限制文件总数，与 `-C`配合实现循环覆盖。	`-W 10`
`-w <文件名>`	将抓取的原始数据包写入指定文件。	`-w my_capture.pcap`
`-c <数量>`	抓取指定数量的数据包后自动退出。	`-c 10000`
`-s <长度>`	设置每个数据包的抓取长度（快照长度byte），`-s 0`表示抓取完整数据包。(在长期抓只需要分析报文头很实用)	`-s 0`

其他选项

Capture Commands

Command	Example usage	Explanation
`-i any`	`tcpdump -i any`	Capture from all interfaces; may require superuser (`sudo/su`)
`-i eth0`	`tcpdump -i eth0`	Capture from the interface `eth0`
`-c count`	`tcpdump -i eth0 -c 5`	Exit after receiving `count (5)` packets
`-r captures.pcap`	`tcpdump -i eth0 -r captures.pcap`	Read and analyze saved capture file `captures.pcap`
`tcp`	`tcpdump -i eth0 tcp`	Show TCP packets only
`udp`	`tcpdump -i eth0 udp`	Show UDP packets only
`icmp`	`tcpdump -i eth0 icmp`	Show ICMP packets only
`ip`	`tcpdump -i eth0 ip`	Show IPv4 packets only
`ip6`	`tcpdump -i eth0 ip6`	Show IPv6 packets only
`arp`	`tcpdump -i eth0 arp`	Show ARP packets only
`rarp`	`tcpdump -i eth0 rarp`	Show RARP packets only
`slip`	`tcpdump -i eth0 slip`	Show SLIP packets only
`-I`	`tcpdump -i eth0 -I`	Set interface as monitor mode
`-K`	`tcpdump -i eth0 -K`	Don’t verify checksum
`-p`	`tcpdump -i eth0 -p`	Don’t capture in promiscuous mode

Filter Commands

Filter expression	Explanation
`src host 127.0.0.1`	Filter by source IP/hostname `127.0.0.1`
`dst host 127.0.0.1`	Filter by destination IP/hostname `127.0.0.1`
`host 127.0.0.1`	Filter by source or destination = `127.0.0.1`
`ether src 01:23:45:AB:CD:EF`	Filter by source MAC `01:23:45:AB:CD:EF`
`ether dst 01:23:45:AB:CD:EF`	Filter by destination MAC `01:23:45:AB:CD:EF`
`ether host 01:23:45:AB:CD:EF`	Filter by source or destination MAC `01:23:45:AB:CD:EF`
`src net 127.0.0.1`	Filter by source network location `127.0.0.1`
`dst net 127.0.0.1`	Filter by destination network location `127.0.0.1`
`net 127.0.0.1`	Filter by source or destination network location `127.0.0.1`
`net 127.0.0.1/24`	Filter by source or destination network location `127.0.0.1` with the tcpdump subnet mask of length `24`
`src port 80`	Filter by source port = 80
`dst port 80`	Filter by destination port = 80
`port 80`	Filter by source or destination port = 80
`src portrange 80-400`	Filter by source port value between 80 and 400
`dst portrange 80-400`	Filter by destination port value between 80 and 400
`portrange 80-400`	Filter by source or destination port value between 80 and 400
`ether broadcast`	Filter for Ethernet broadcasts
`ip broadcast`	Filter for IPv4 broadcasts
`ether multicast`	Filter for Ethernet multicasts
`ip multicast`	Filter for IPv4 multicasts
`ip6 multicast`	Filter for IPv6 multicasts
`ip src host mydevice`	Filter by IPv4 source hostname `mydevice`
`arp dst host mycar`	Filter by ARP destination hostname `mycar`
`rarp src host 127.0.0.1`	Filter by RARP source `127.0.0.1`
`ip6 dst host mywatch`	Filter by IPv6 destination hostname `mywatch`
`tcp dst port 8000`	Filter by destination TCP port = 8000
`udp src portrange 1000-2000`	Filter by source TCP ports in 1000–2000
`sctp port 22`	Filter by source or destination port = 22

Display Commands

Example	Explanation
`tcpdump -i eth0 -A`	Print each packet (minus its link level header) in ASCII. Handy for capturing web pages. [![Screenshot with ASCII (sudo tcpdump twitter)
`tcpdump -D`	Print the list of the network interfaces available on the system and on which tcpdump can capture packets.
`tcpdump -i eth0 -e`	Print the link-level header on each output line, such as MAC layer addresses for protocols such as Ethernet and IEEE 802.11.
`tcpdump -i eth0 -F /path/to/params.conf`	Use the file `params.conf` as input for the filter expression. (Ignore other expressions on the command line.)
`tcpdump -i eth0 -n`	Don’t convert addresses (i.e., host addresses, port numbers, etc.) to names.
`tcpdump -i eth0 -S`	Print absolute, rather than relative, TCP sequence numbers. (Absolute TCP sequence numbers are longer.)
`tcpdump -i eth0 --time-stamp-precision=nano`	When capturing, set the timestamp precision for the capture to `tsp`: • `micro` for microsecond (default) • `nano` for nanosecond.
`tcpdump -i eth0 -t`	Omit the timestamp on each output line.
`tcpdump -i eth0 -tt`	Print the timestamp, as seconds since January 1, 1970, 00:00:00, UTC, and fractions of a second since that time, on each dump line.
`tcpdump -i eth0 -ttt`	Print a delta (microsecond or nanosecond resolution depending on the `--time-stamp-precision` option) between the current and previous line on each output line. The default is microsecond resolution.
`tcpdump -i eth0 -tttt`	Print a timestamp as hours, minutes, seconds, and fractions of a second since midnight, preceded by the date, on each dump line.
`tcpdump -i eth0 -ttttt`	Print a delta (microsecond or nanosecond resolution depending on the `--time-stamp-precision` option) between the current and first line on each dump line. The default is microsecond resolution.
`tcpdump -i eth0 -u`	Print undecoded network file system (NFS) handles.
`tcpdump -i eth0 -v`	Produce verbose output. When writing to a file (`-w` option) and at the same time not reading from a file (`-r` option), report to standard error, once per second, the number of packets captured.
`tcpdump -i eth0 -vv`	Additional verbose output than `-v`
`tcpdump -i eth0 -vvv`	Additional verbose output than `-vv`
`tcpdump -i eth0 -x`	Print the headers and data of each packet (minus its link level header) in hex.
`tcpdump -i eth0 -xx`	Print the headers and data of each packet, including its link level header, in hex.
`tcpdump -i eth0 -X`	Print the headers and data of each packet (minus its link level header) in hex and ASCII.
`tcpdump -i eth0 -XX`	Print the headers and data of each packet, including its link level header, in hex and ASCII.

Output Commands

Command	Example	Explanation
`-w captures.pcap`	`tcpdump -i eth0 -w captures.pcap`	Output capture to a file `captures.pcap`
`-d`	`tcpdump -i eth0 -d`	Display human-readable form in standard output
`-L`	`tcpdump -i eth0 -L`	Display data link types for the interface
`-q`	`tcpdump -i eth0 -q`	Quick/quiet output. Print less protocol information, so output lines are shorter.
`-U`	`tcpdump -i eth0 -U -w out.pcap`	Without -w option Print a description of each packet’s contents. With -w option Write each packet to the output file `out.pcap` in real time rather than only when the output buffer fills.

Miscellaneous Commands

Operator	Syntax	Example	Description
`AND`	`and, &&`	`tcpdump -n src 127.0.0.1 and dst port 21`	Combine filtering options joined by “and”
`OR`	`or, \\|`	`tcpdump dst 127.0.0.1 or src port 22`	Match any of the conditions joined by “or”
`EXCEPT`	`not, !`	`tcpdump dst 127.0.0.1 and not icmp`	Negate the condition prefixed by “not”
`LESS`	`less, <, (<=)`	`tcpdump dst host 127.0.0.1 and less 128`	Shows packets shorter than (or equal to) 128 bytes in length. < only applies to length 32, i.e., `<32`.
`GREATER`	`greater, >, (>=)`	`tcpdump dst host 127.0.0.1 and greater 64`	Shows packets longer than (or equal to) 64 bytes in length. > only applies to length 32, i.e., `>32`.
`EQUAL`	`=, ==`	`tcpdump host 127.0.0.1 = 0`	Show packets with zero length

Example Usage

Example	Explanation
`tcpdump -r outfile.pcap src host 10.0.2.15`	Print all packets in the file `outfile.pcap` coming from the host with IP address 10.0.2.15
`tcpdump -i any ip and not tcp port 80`	Listen for non-HTTP packets (which have TCP port number 80) on any network interface
`tcpdump -i eth0 -n >32 -w pv01.pcap -c 30`	Save 30 packets of length exceeding 32 bytes to `captures.pcap` without DNS resolution on the `eth0` network interface
`tcpdump -AtuvX icmp`	Capture ICMP traffic and print ICMP packets in hex and ASCII and the following features: With: • headers • data • undecoded NFS handles Without: • link level headers • timestamps.
`tcpdump 'tcp port 80 and (((ip[2:2] - ((ip[0]&0xf)<<2)) - ((tcp[12]&0xf0)>>2)) != 0)'`	Print all IPv4 HTTP packets to and from port 80, i.e. print only packets that contain data, not, for example, SYN and FIN packets and ACK-only packets.
